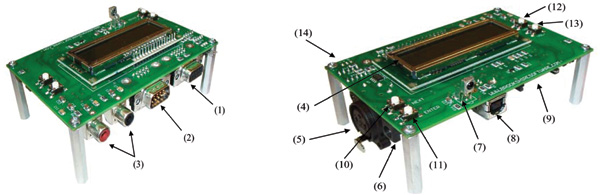

(1) Control serial port
(2) Device serial port*
(3) Audio RCA jacks
(4) LCD screen
(5) DMX output port*
(6) Power connector
(7) Infrared receiver
(8) USB port
(9) SD/SDHC slot
(10) Next key
(11) Enter key
(12) +VOL key
(13) -VOL key
(14) TTL port*
Parameter | Value |
---|---|
Voltage Supply | 6 – 8 VDC |
Current Consumption | 300 mA |
Audio connectors | One left and one right RCA jack |
Maximum audio current | 50 mA |
Playback Modes | Play single routine, repeat single routine, repeat all routines, play random routine |
Baud Rates | 2400, 4800, 9600, 19200, and 38400 bps |
Device Support | MiniSSC, SMI, SV203, Parallax/Propeller, Pololu, PicoPic, Lynxmotion SSC32, K108A, DMX and compatible |
Frame Rates | 33, 50, 66, 100, and 200 FPS |
Internal digital clock | Initiate playback on any combination of month, day of month, weekday, hour, or minute. |
*The DMX, TTL, and device serial ports cannot be used simultaneously.
